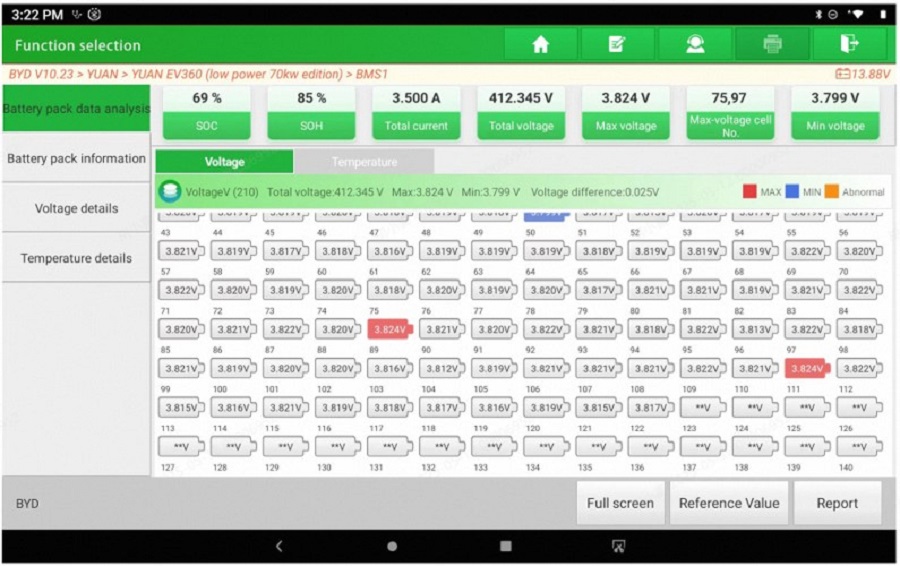

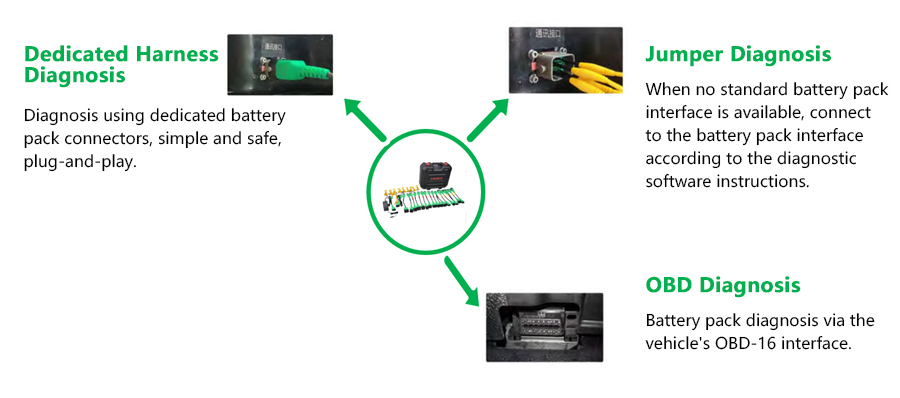

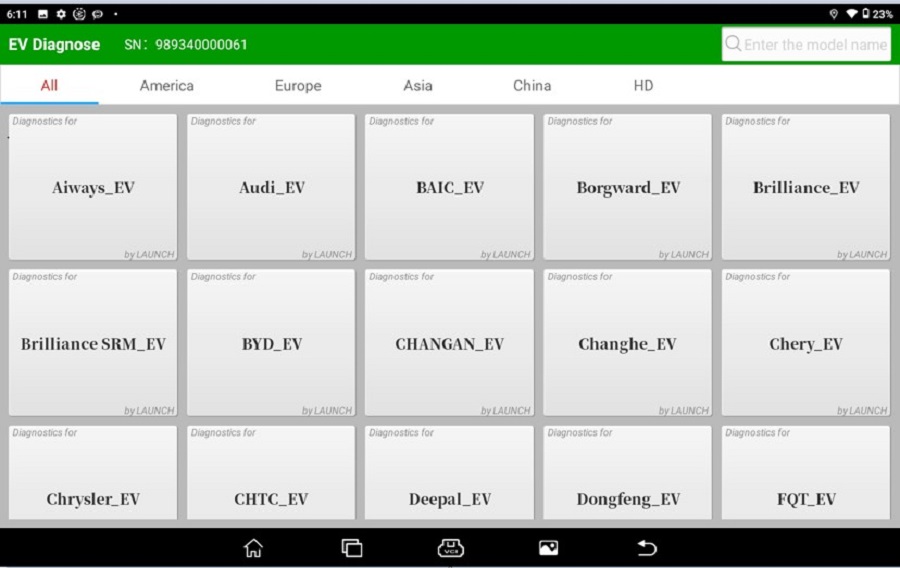

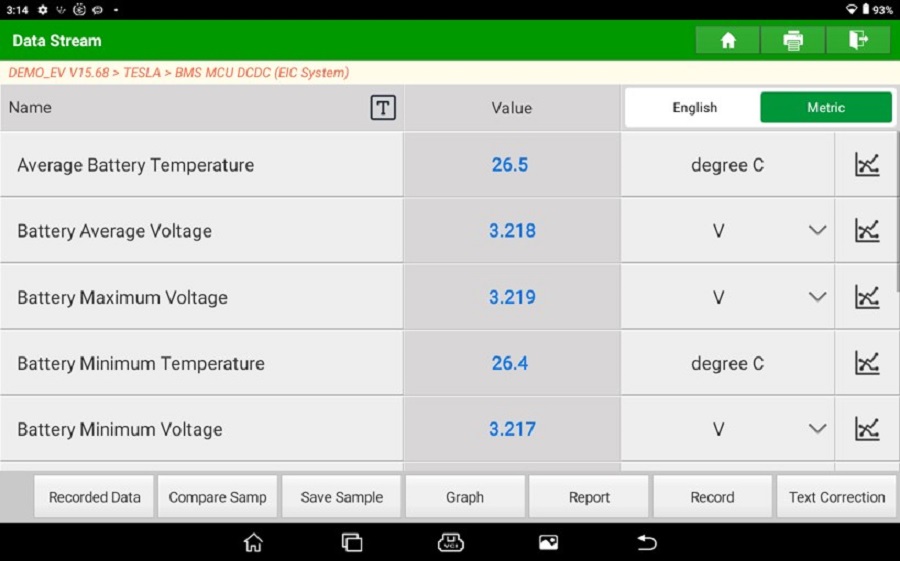

The battery pack is a key component of EVs. Testing the battery pack is one of the important steps in EV inspection. Using the battery pack diagnostic software, you can quickly read battery pack information, including but not limited to the number of battery pack modules, SOC, SOH, current temperature, etc. Additionally, it can deeply read the voltage and temperature values of individual cells within each module, helping technicians quickly understand the battery pack status and providing guidance for subsequent repairs.

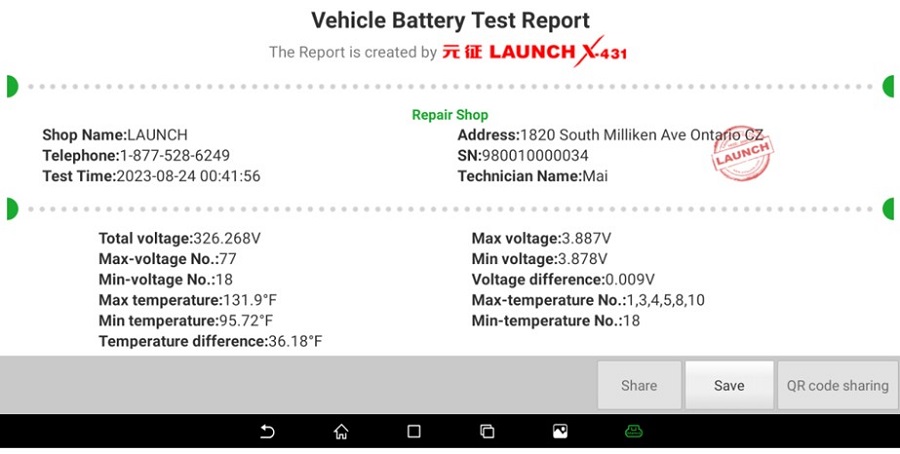

Supports generating diagnostic reports, as well as report sharing and printing.

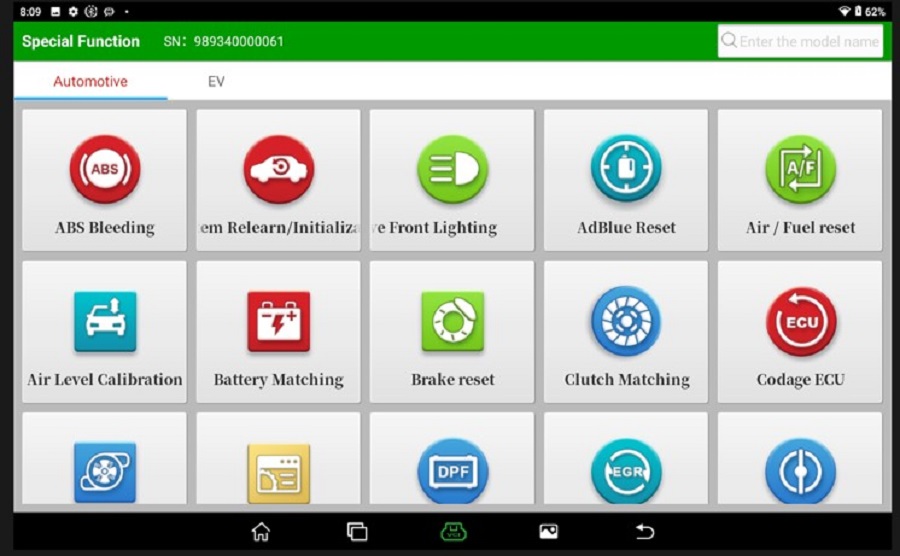

Special Functions
Supports matching, coding, and common special functions for programmable modules on most vehicle models,

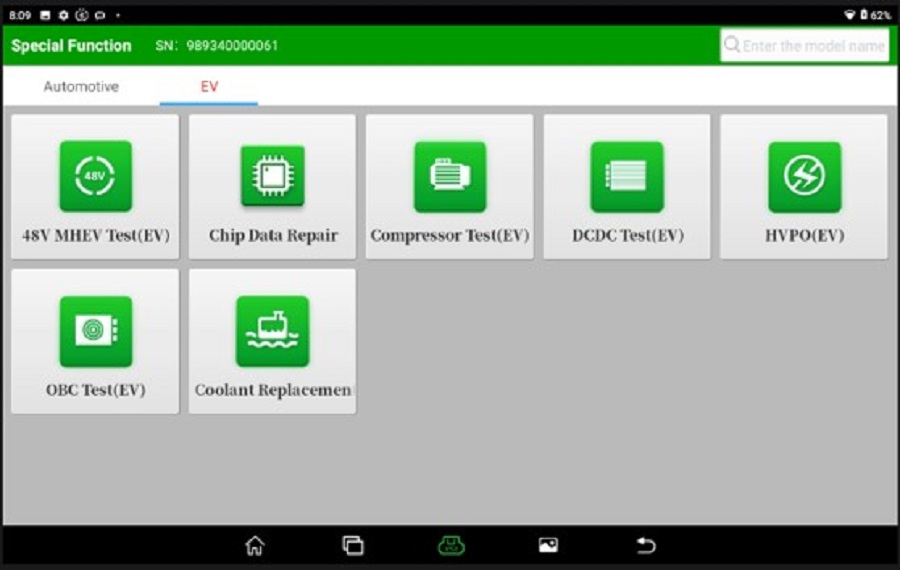

Such as for EV: EV air conditioning compressor testing, coolant replacement, high voltage power‑off(HVPO), on‑board charger offline testing(OBC Test), DC‑DC converter offline testing(DCDC Test), 48V mild hybrid component testing(48V MHEV Test), chip data repair,
For Automotive:
maintenance light reset, throttle matching, steering angle reset, brake pad reset, tire pressure reset, immobilizer matching, ABS bleeding, battery matching, gear learning, injector coding, sunroof initialization, headlight matching, suspension matching, transmission matching, exhaust gas recirculation, window calibration, seat calibration, tire modification, language setting, A/F adjustment, electronic water pump activation, transport mode deactivation, start‑stop setting, automatic air conditioning initialization, engine power balance, high‑voltage battery health detection, intelligent cruise control system calibration, motor angular position sensor calibration, and other special functions.

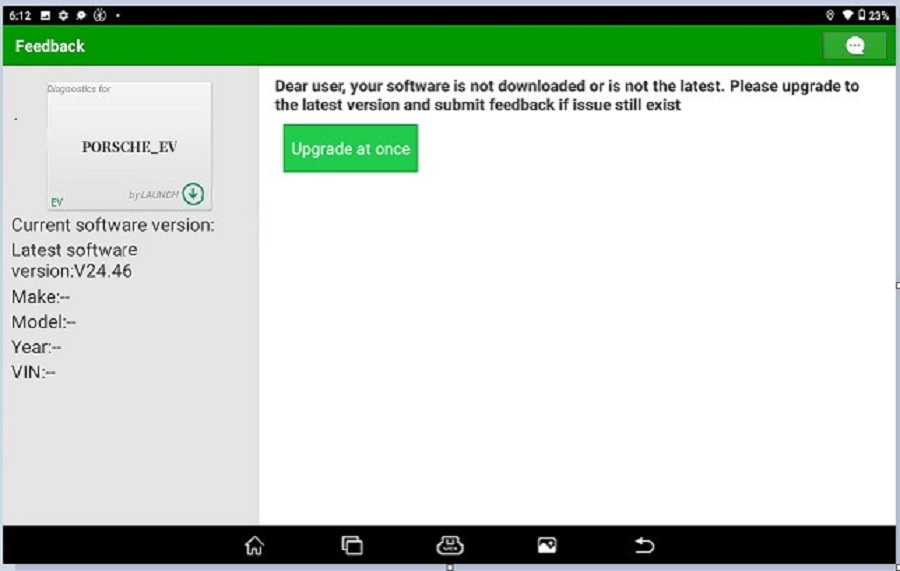

Feedback
If you encounter abnormal vehicle software or function issues under special circumstances during use, you can report the problem to LAUNCH Company, and specialized technical staff will track and handle it.

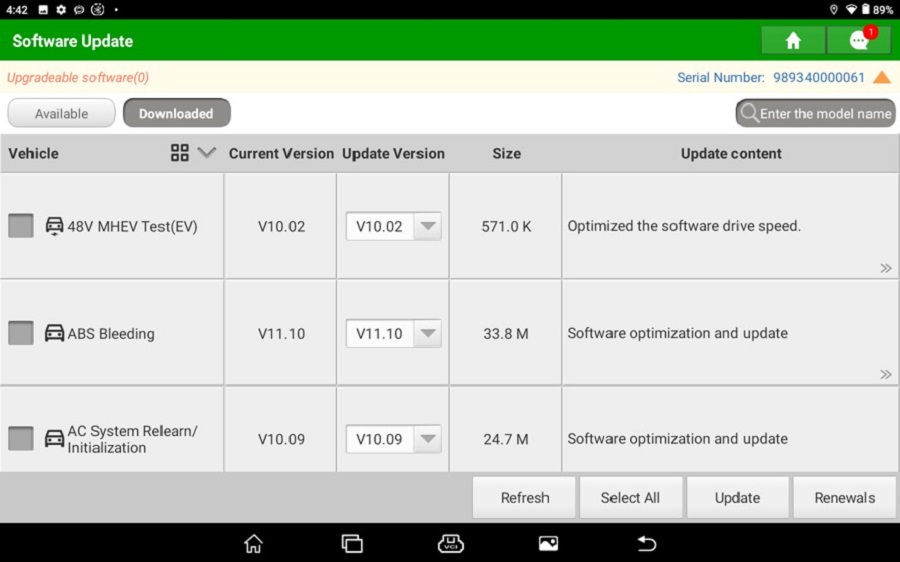

Software Update
Supports one‑click updates for the operating system, client, vehicle software, and firmware; vehicle software updates quickly to keep pace with the market.

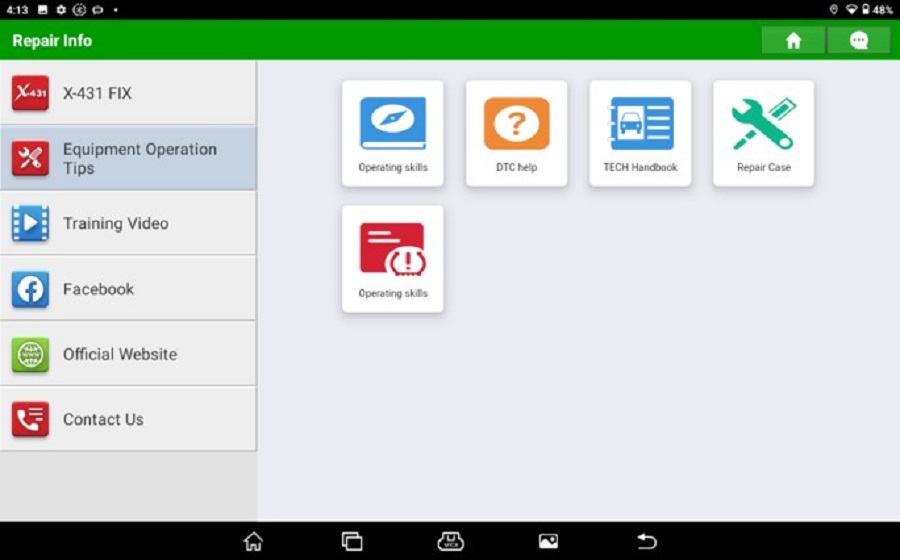

Repair Infor

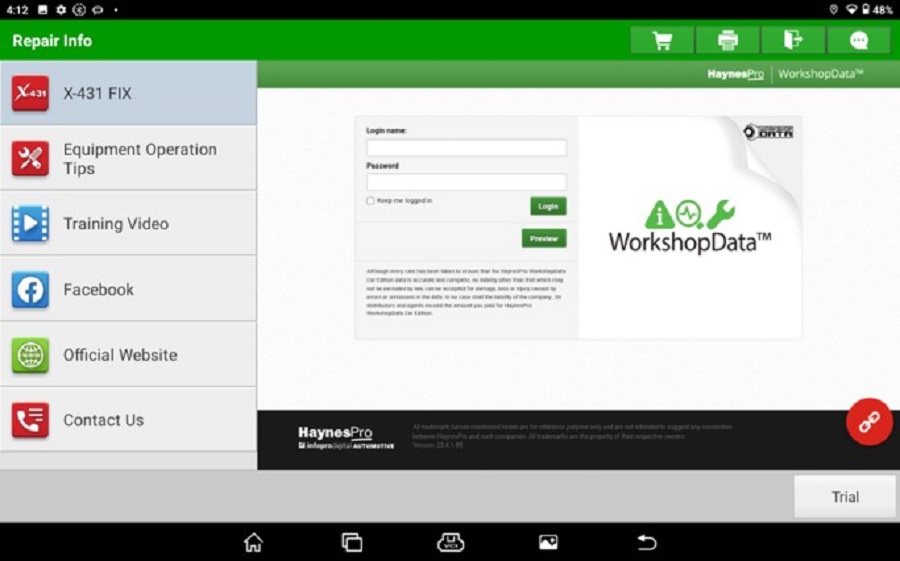

Supports optional purchase of X431 FIX. Provides free training videos and equipment operation tips: including repair cases, fault code help, technical manuals, operation tips, etc.

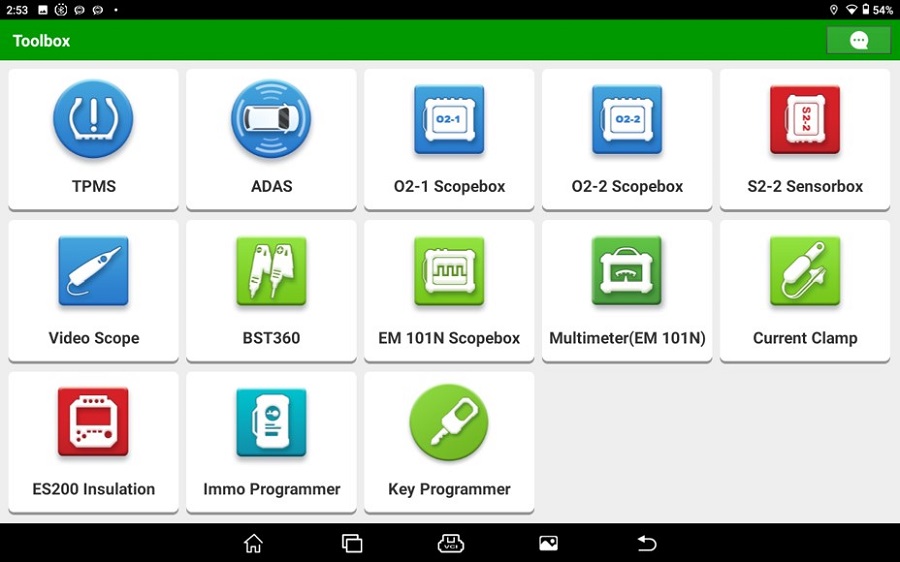

Toolbox
Supports 13 expansion modules including TPMS, ADAS, new energy current clamp, new energy oscilloscope, new energy multimeter, battery tester, etc.

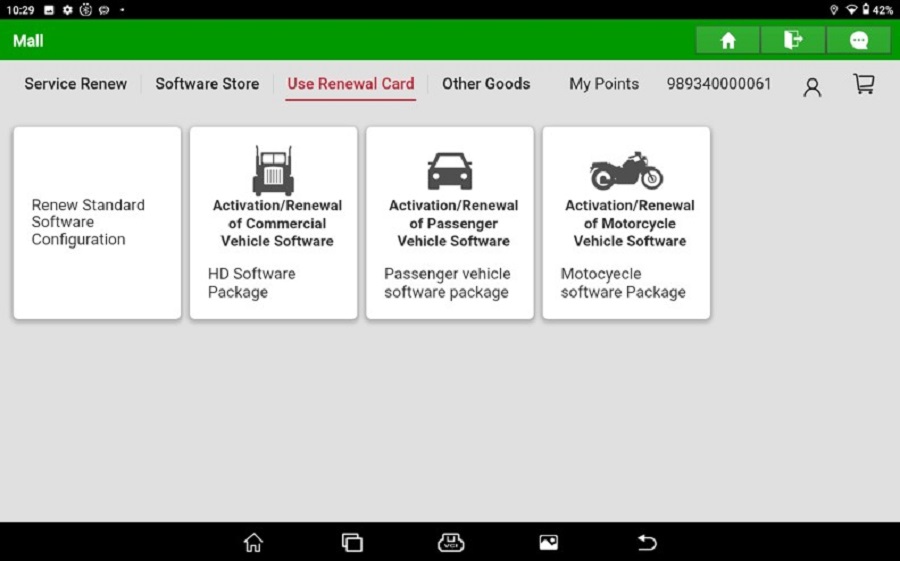

Mall
Supports expansion of commercial vehicle, passenger vehicle, immobilizer, and motorcycle software packages for new energy equipment.

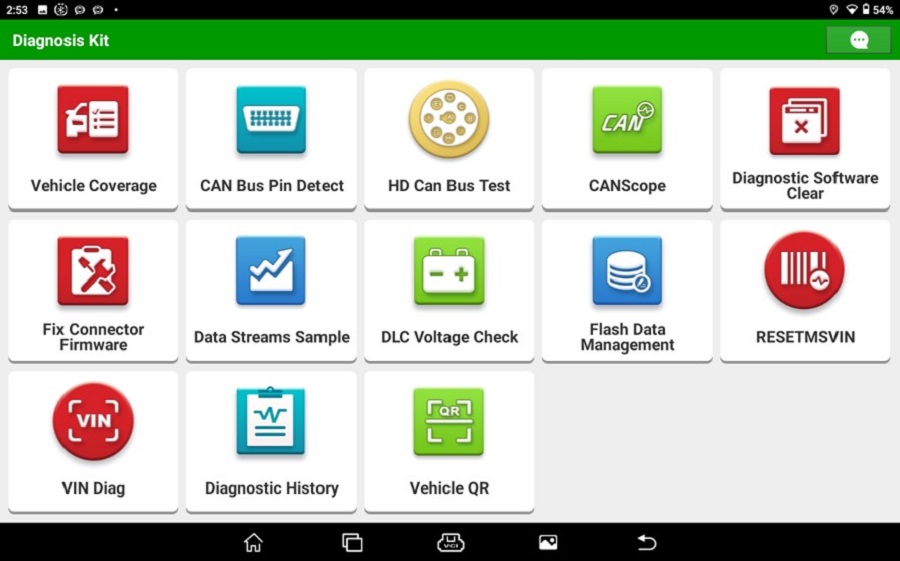

Diagnosis Kit

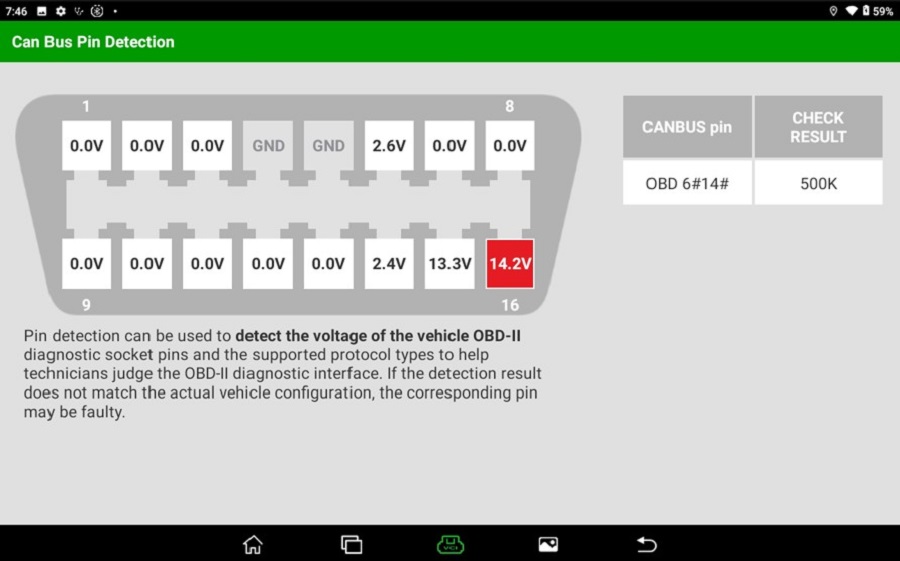

Small tools such as vehicle coverage, CANScope, HD CAN BusTest, Can Bus pin detect, Flash data management, etc., assist with repairs.

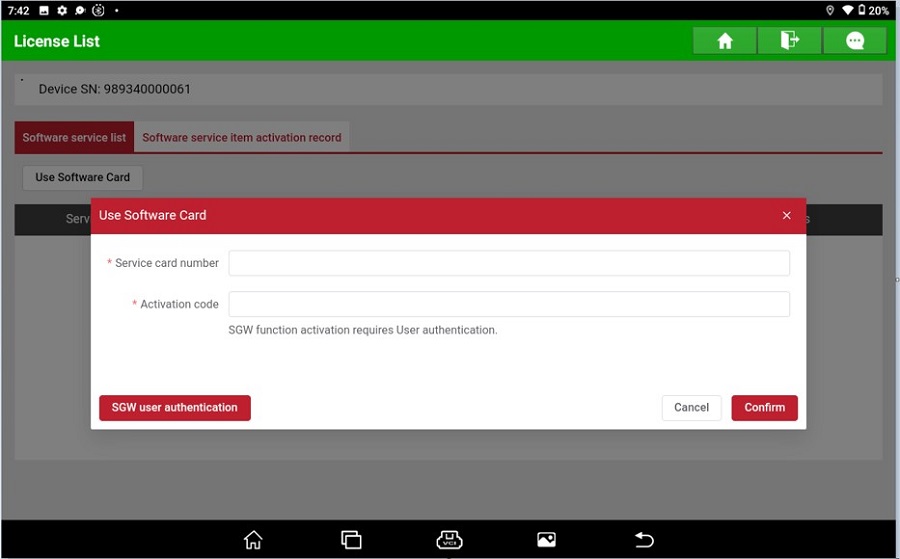

License List
Supports activation of SGW gateway and other services to use corresponding functions.

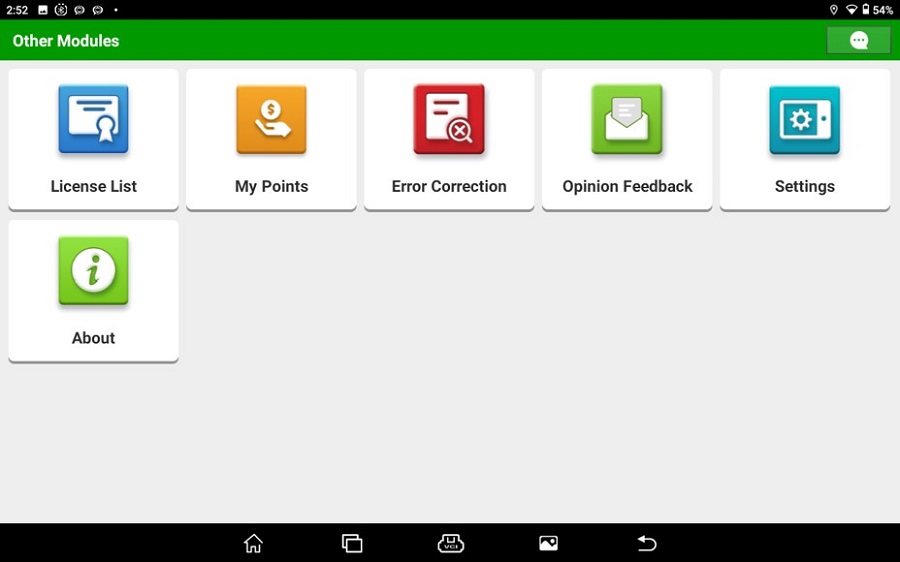

Other Modules
Supports License List, My Points, error correction, opinion feedback, settings, about, and other functions.

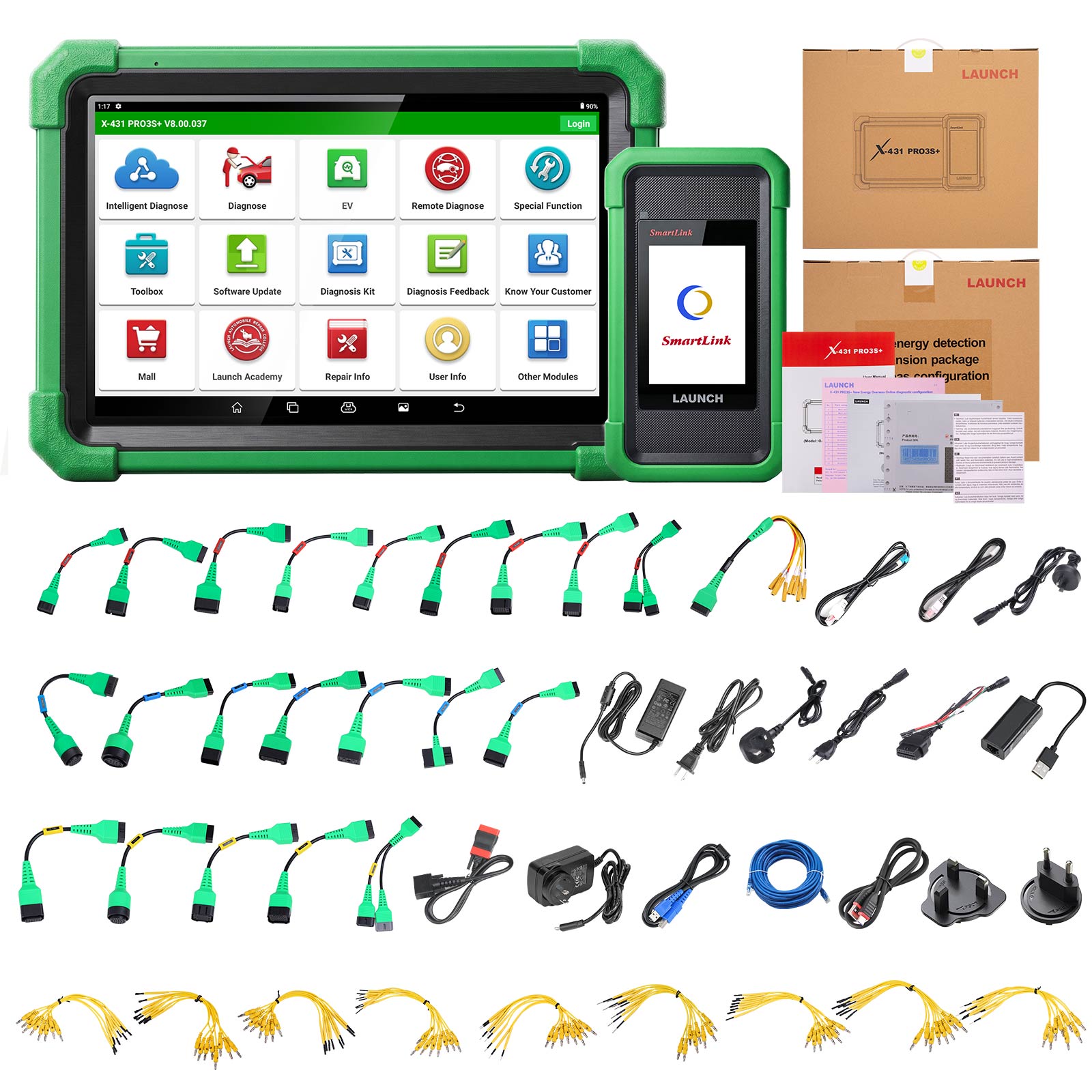

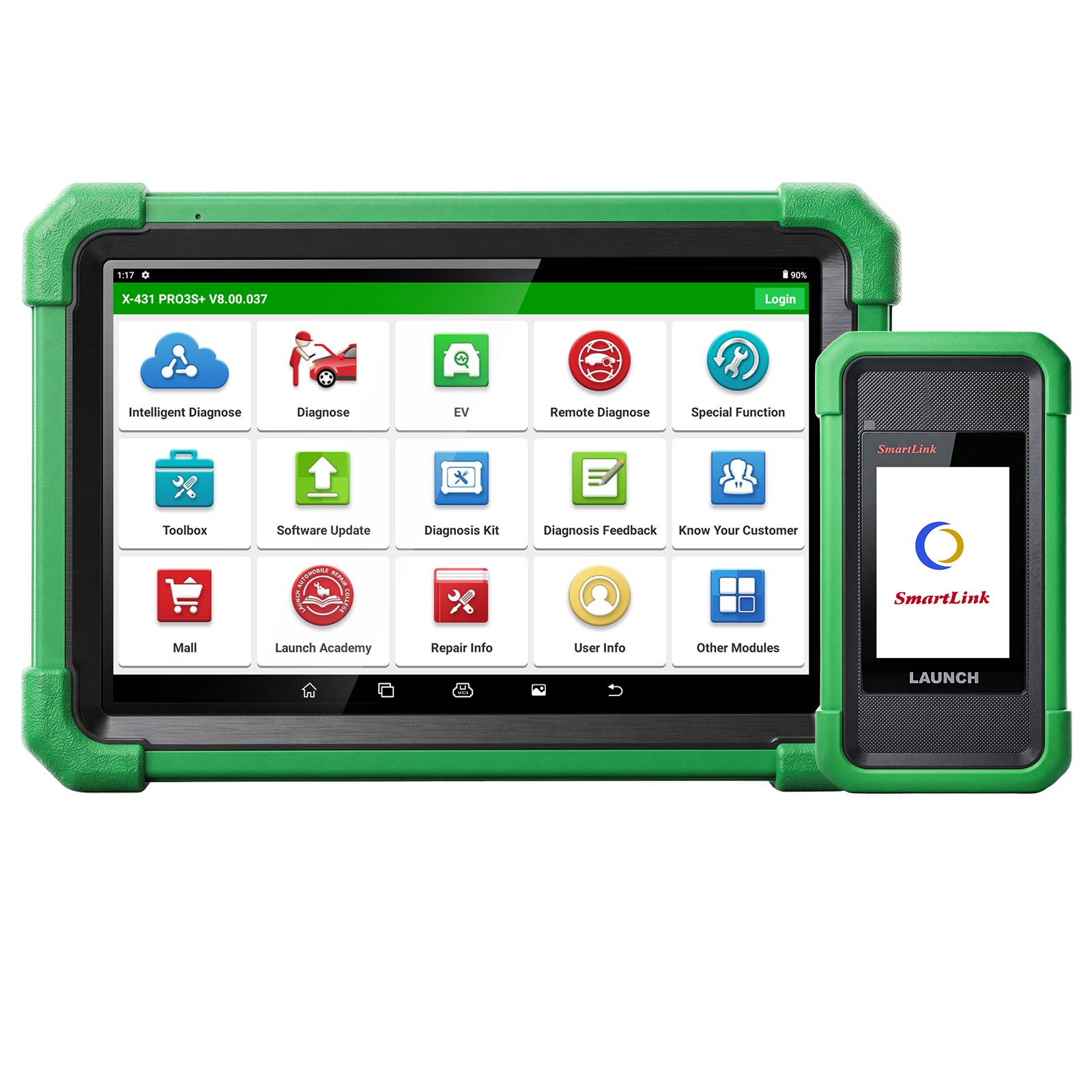

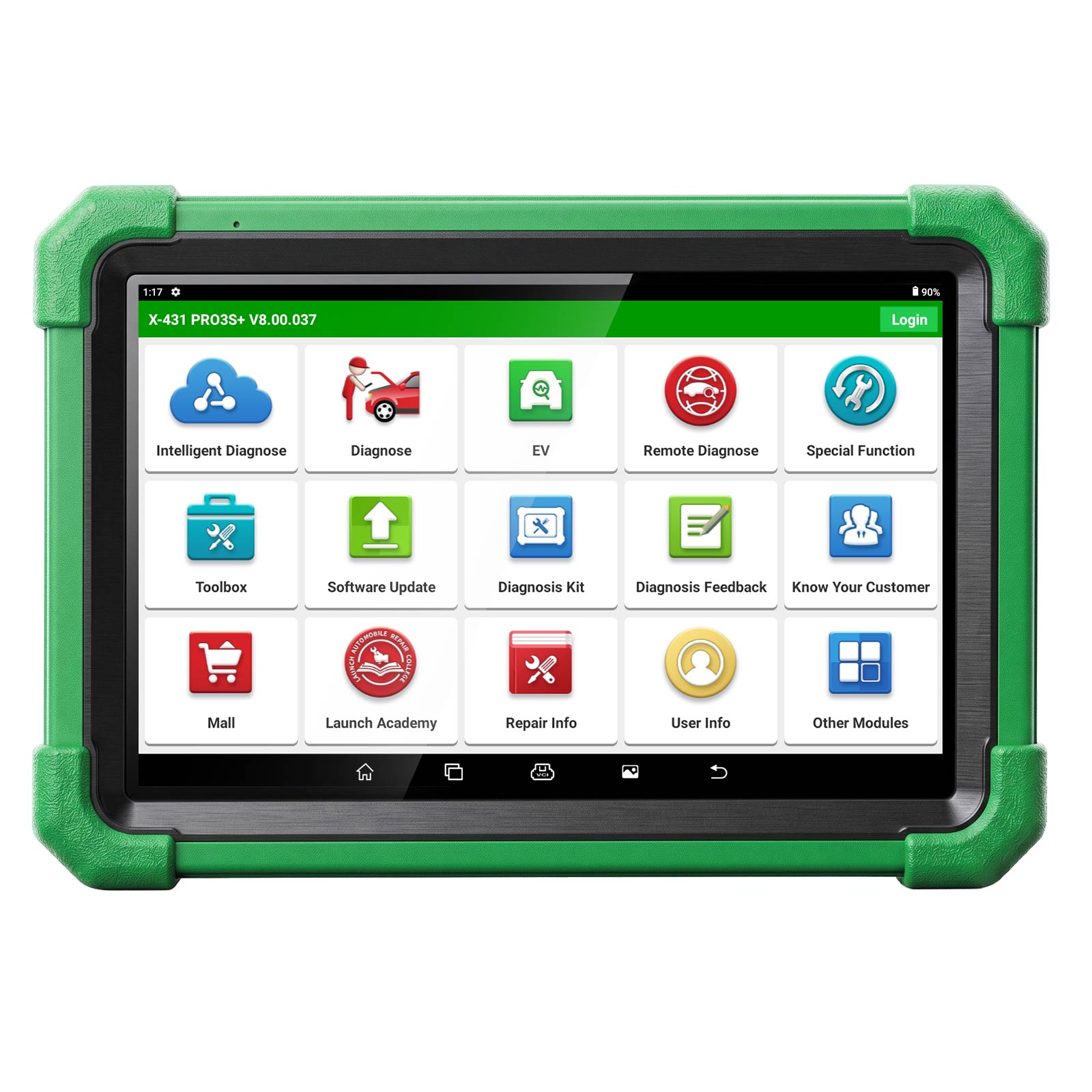

Product Features of LAUNCH X-431 PRO3S+ Tablet:
Powerful Hardware Upgrade
Android 10.0 OS
4GB RAM + 64GB storage
Stable system with strong compatibility
Display Upgrade
10.1-inch Gorilla Glass screen
Sunlight-readable for clear visibility
Battery Upgrade
Cells connected in series for high power output
6300mAh @ 7.6V
Strong power delivery with extended battery life
Enhanced Compatibility
New Type A port added
Supports external expansion tools such as oscilloscopes, sensors, and immobilizer programming devices
Human-Centered Industrial Design
Reinforced edges for impact protection
Swivel stand for easy support and hanging
Dust-resistant design
Product Specifications of the LAUNCH X-431 PRO3S+ Tablet:
Operating System: Android 10.0
Processor: 2.0GHz quad-core
Memory: 4GB RAM
Storage: 64GB
Display: 10.1-inch, fully laminated, sunlight-readable screen
Resolution: 1280×800
Camera: 80 MP rear camera
Wi-Fi: Supports 2.4GHz & 5GHz dual band
Operating Temperature: 0℃～50℃
Dimensions: 274×190.5×40.5 mm
Interfaces: Type A and Type C

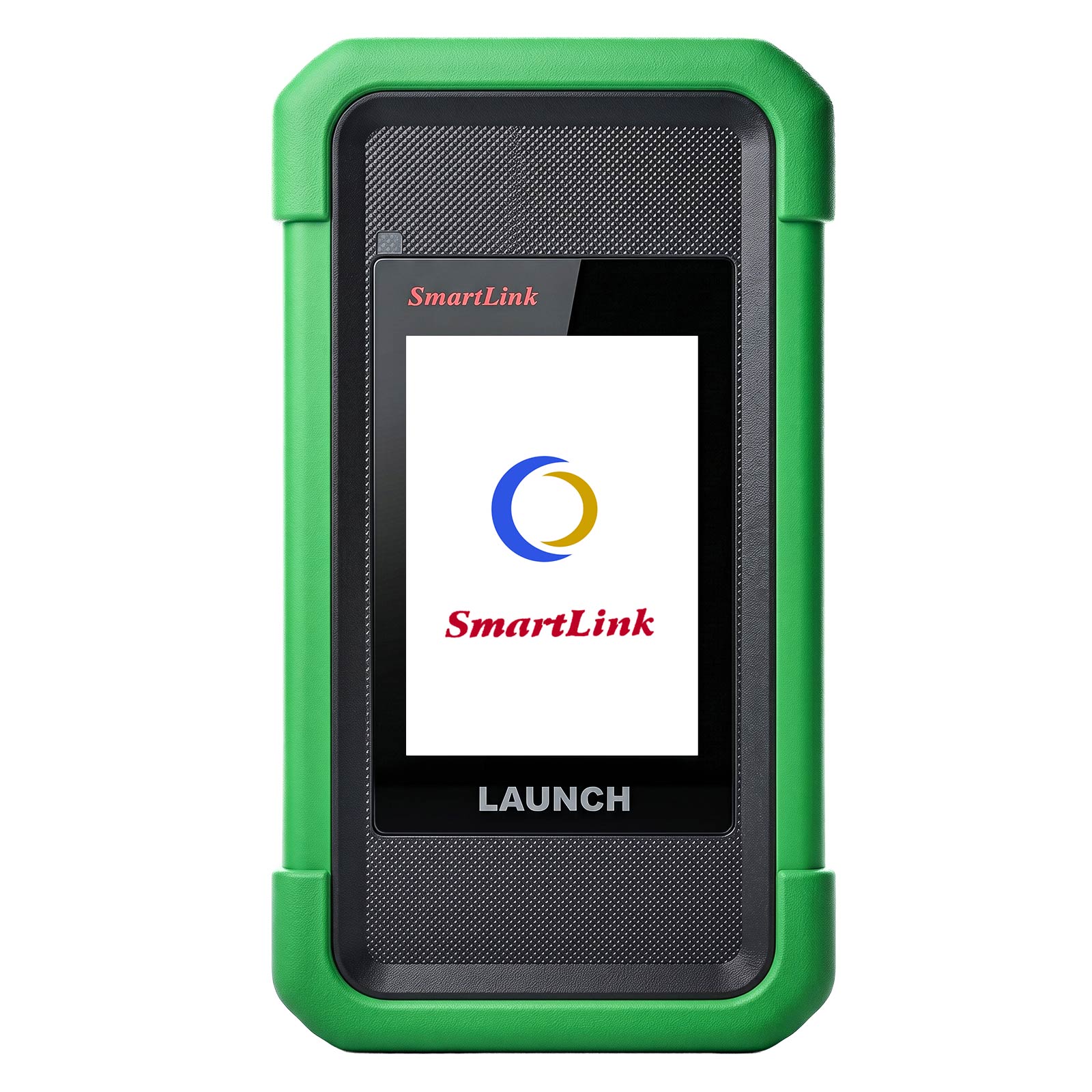

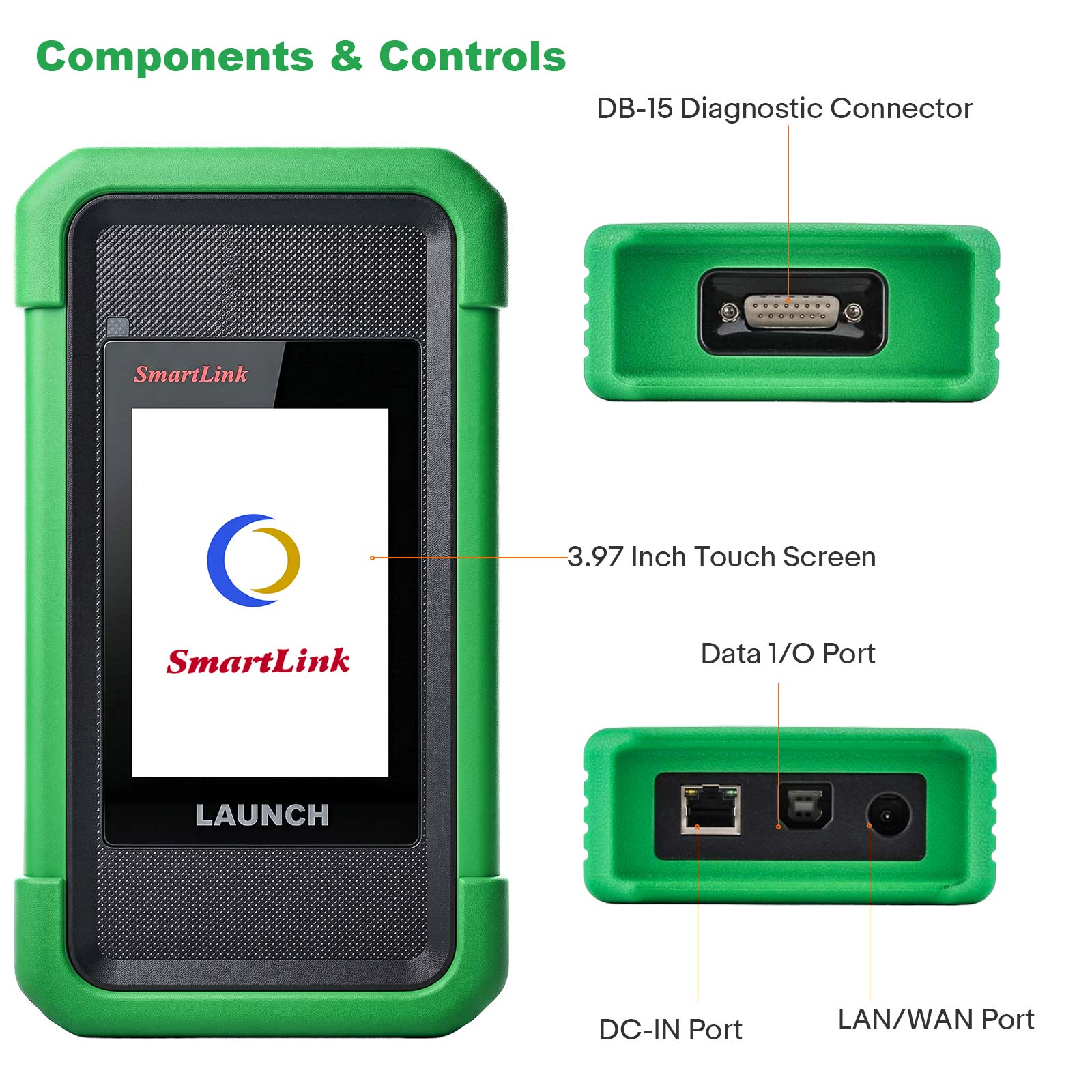

Product Features of the SmartLink C V2 Connector:
Fully Laminated Screen Design
Prevents dust from entering the screen
Prevents fogging
Enhanced Wi-Fi Signal
Optimized Wi-Fi antenna and module
Improved Heat Dissipation
Additional cooling vents
More Secure Connection
OBD16 changed to DB15 for improved connection stability
Test cable secured to the interface with screws
Multi-Protocol Support
Supports CANFD protocol
Supports CAN2.0
Supports DOIP protocol
Supports J2534 standard
Supports D-PDU standard
Super Remote
Request remote technician service support
Supports remote service via X431 diagnostic devices
Supports remote service via specialized diagnostic devices (original equipment)
Supports remote service via third-party diagnostic devices
